Handrail lightingLEDpod 50

Details + specs

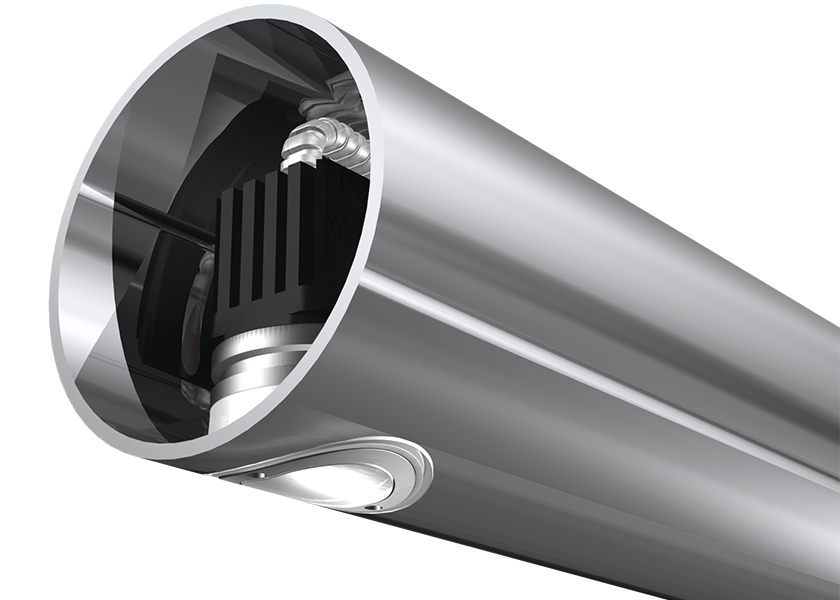

Product image

LIGHTING FOR HANDRAILS series product features

View

Light distribution

Details

Color
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • Amber
  • Also available in Blue, Green, Red, and custom color temperature (as special order)
CRI
  • 80-85
Binning
  • 3 MacAdam Steps
Driver
  • 350 – 500mA Constant Current (provided with fixture)
Control
  • DALI
  • 0-10V
  • DMX (for dimming only, not for individually addressed LEDpod)
Distribution
  • Symmetrical
  • Asymmetrical
Tube Size
  • Ø 1.75” – 2.00” (48-50mm), Max. wall 0.22in (5.5mm) †
Cut Out
  • 0.99″ (25mm)
Weight
  • 0.16 LBS (0.074kg)

* All IP rated luminaires tested to AS60529-2004 Degrees of protection provided by enclosures (IP Code)
† Others sizes available upon request
